AIR DE-DUSTING UNIT -
ADU 300 (INBUILT BLOWER)

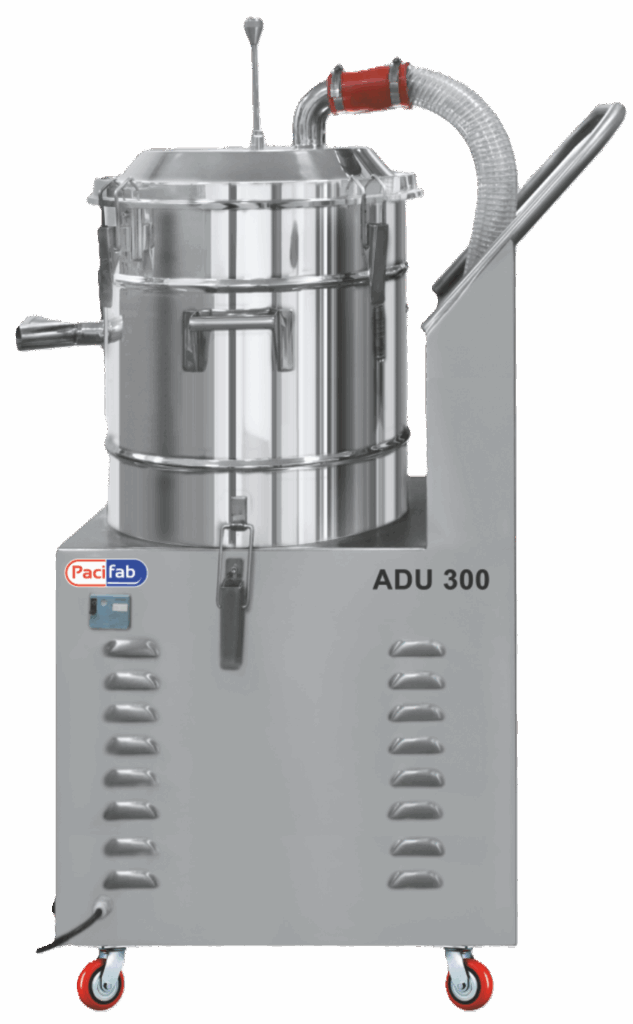

ADU 300 (Inbuilt Blower)
OVERVIEW
The ADU 300 (Inbuilt Blower) is a robust air de-dusting unit designed for high-capacity encapsulation lines. It utilizes a powerful 7.5 HP motor to generate a strong vacuum, effectively removing excess powder from capsule surfaces. With a high CFM capacity and built-in blower, it ensures optimal de-dusting, maintains a clean production environment, and supports compliance with stringent pharmaceutical manufacturing standards.
APPLICATIONS
This unit is applied in pharmaceutical encapsulation lines to efficiently remove dust from filled capsules, ensuring final product cleanliness, preventing cross-contamination, and maintaining high-quality standards.
Unleash the XTR Series Power
Have Questions? We're Here to Help!
Download Brochures
- DOCUMENTATION
ADU 300
(Inbuilt Blower)
OVERVIEW
The ADU 300 (Inbuilt Blower) is a robust air de-dusting unit designed for high-capacity encapsulation lines. It utilizes a powerful 7.5 HP motor to generate a strong vacuum, effectively removing excess powder from capsule surfaces. With a high CFM capacity and built-in blower, it ensures optimal de-dusting, maintains a clean production environment, and supports compliance with stringent pharmaceutical manufacturing standards.
APPLICATIONS
This unit is applied in pharmaceutical encapsulation lines to efficiently remove dust from filled capsules, ensuring final product cleanliness, preventing cross-contamination, and maintaining high-quality standards.
FEATURES
1. High-Capacity Vacuum Generation
- Delivers 300 CFM.
- Robust impeller-based system.
2. Powerful Motor Performance
- 7.5 HP (6.2 KW) motor.
- For large-scale de-dusting systems.
3. Superior Pressure and Vacuum
- Max Pressure: 337 mBar.
- Max Vacuum: 305 mBar.
4. Integrated Blower Design
- Self-contained, inbuilt blower unit.
- Eliminates external components.
5. Efficient Powder Containment
- Heavy-Duty Construction.
- Sturdy, industrial-grade component.
6. High-Capacity Powder Collection
- Large stainless steel collection drum.
- Handles high-volume powder waste.
7. Compact Footprint Design
- Optimized dimensions.
- Saves valuable production floor space.
8. Industrial Power Supply
- 415V, 3-Phase power supply.
- Reliable industrial performance.
9. Efficient Filtration System
- Effective powder-air separation.
- Protects blower and environment.
10. cGMP Compliant Operation
- Designed for easy cleaning.
- Supports stringent hygiene protocols.
TECHNICAL SPECIFICATIONS
High-Speed Precision Encapsulation for Large-Scale Production
The PF 200 is a state-of-the-art capsule filling machine designed for high-output pharmaceutical manufacturing, combining advanced technology with exceptional accuracy and versatility.
