AIR DE-DUSTING UNIT -
ADU 100 / 200 (BLOWER ON SERVICE FLOOR)

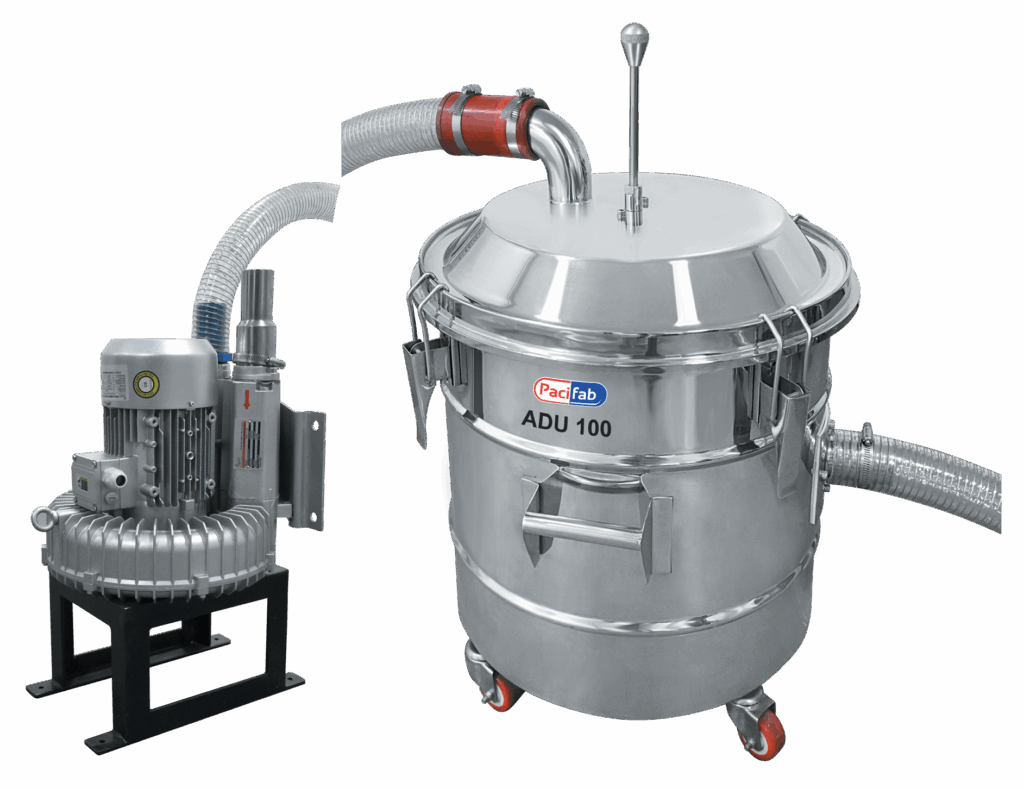

ADU 100 / 200 (Blower on Service Floor)
OVERVIEW
ADU 100 / 200 (Blower on Service Floor) is a robust air de-dusting unit that functions as an industrial vacuum cleaner. It effectively removes and collects residual powder from associated de-dusting and polishing machines (DPM), ensuring a clean production environment. Its separate blower design is ideal for installations where noise reduction on the production floor is a priority.
APPLICATIONS
Used to collect dust extracted during the capsule de-dusting and polishing process, maintaining cleanroom compliance and improving overall operational hygiene in pharmaceutical manufacturing.
Unleash the XTR Series Power
Have Questions? We're Here to Help!
Download Brochures
- DOCUMENTATION
ADU 100 / 200
(Blower on Service Floor)
OVERVIEW
ADU 100 / 200 (Blower on Service Floor) is a robust air de-dusting unit that functions as an industrial vacuum cleaner. It effectively removes and collects residual powder from associated de-dusting and polishing machines (DPM), ensuring a clean production environment. Its separate blower design is ideal for installations where noise reduction on the production floor is a priority.
APPLICATIONS
Used to collect dust extracted during the capsule de-dusting and polishing process, maintaining cleanroom compliance and improving overall operational hygiene in pharmaceutical manufacturing.
FEATURES
1. Airflow Performance
- Delivers up to 2,000 CFM.
- Static pressure to 1.5 in. w.g.
2. Motor and Drive System
- 5 HP, 3-Phase motor.
- V-Belt drive efficiency.
3. Durable Casing Construction
- 12-Gauge galvanized steel.
- ISO 1461 corrosion protection.
4. Advanced Impeller Design
- Backward-inclined, non-overloading fan.
- AMCA 240 certified performance.
5. Integral Motor Mounting System
- Rigid, welded steel base.
- Vibration-isolating curb adapter.
6. Comprehensive Service Accessibility
- Large, gasketed access doors.
- Tool-less, quick-latch fasteners.
7. Engineered Vibration Control
- Dynamic balancing to G 6.3.
- Isolated spring mountings.
8. High-Temperature Capability
- Standard 250°F operation.
- Optional 500°F construction.
9. Integrated Electrical Provisions
- NEMA 4X rated starter.
- UL/CSA compliant components.
10. GMP Compliance
- Meets global cGMP and FDA guidelines.
- Validated for quality and traceability.
TECHNICAL SPECIFICATIONS
High-Speed Precision Encapsulation for Large-Scale Production
The PF 200 is a state-of-the-art capsule filling machine designed for high-output pharmaceutical manufacturing, combining advanced technology with exceptional accuracy and versatility.
